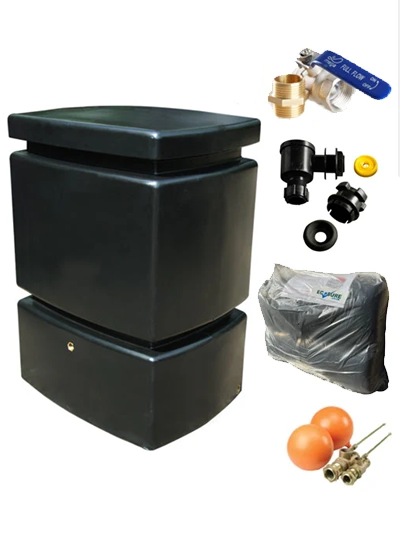

525 Litre Potable Water Tank c/w Setup Kit
Complete Kit

525 Litre Potable Water Tank c/w Setup Kit

Kit details

  • 525 Litre Potable Water Tank
  • 1/2'' Float Valve
  • By-Law 30 Kit
  • Insulation Jacket
  • 1'' Shut Off Vavle

£414.53

Includes VAT & Delivery (mainland England)

Brand: Ecosure
SKU: ECO525PILPOTKIT
Est. Delivery 10 working days+
Volume 525 Litres
Availability: In production
download spec sheet Download Spec Sheet

Qty
Compare This Product
Add to wishlist Loading.. Remove From wishlist Go to wishlist

UK Shipping

Fast UK Delivery, Collection Available - call 01763 261781.

Made in britain - Union Flag - Union Jack

Made in Britain

Designed & manufactured in UK

masterpaypalvisa

This complete kit is perfect for new installations or upgrading your exisiting setup. This large, black water storage tank is suitable for storing potable/drinking water.

Product details

  • Manufactured using WRAS Approved polyethylene Icorene 1314 DW Black 9001 or Revolve N-748 Black approved under WRAS Approval 1202543 and 1201523 respectively.
  • Approximate wall thickness: 6-7mm
  • 9" screwdown lid as standard
  • ¾" raised brass threaded outlet
  • 2 x 1" brass threaded outlets - one on each side

The EcoPillar is made from industrial strength premium MDPE (Medium Density Polyethylene), which is highly resistant to frost and damage.

The water tank has a 3/4" BSP outlet on the front of the tank and two 1'' BSP outlets at the bottom give you maximum usage. You can make your own holes without effecting the tanks' structural integrity.

525 Litre Water Tank Dimensions
Height 1110mm
Width 630mm
Length 820mm
Weight 25kg
Front Outlet 1 x ¾ BSP
Side Outlets 2 x 1" BSP
Capacity 525 litres

What are your water tanks made of?

All Ecosure water tanks are manufactured from high quality Medium Density Polythylene (MDPE). This strong durable material is weather and impact resistant.

Can they be installed underground?

We manufacture a range of water tanks specifically design to be installed underground. Available in non-potable and potable versions.

How do I get the water out?

Each tank has brass outlet moulded into them during the manufacturing process. This outlet can be used to attached a tap or shut off valve. The size of the outlet depends on the size of the tank.

How do I gain access to the tank?

Each tank is fitted with a vented lid and range from 9'' for our smaller baffled tanks and 14'' or 16'' for our larger tanks. Some are available as lockable lids. We also produce a unique range of Total Access Water Tanks where the entire top of the tank canbe removed and replaced.
