About This System
Our easy hydro systems are designed to be straight forward and easy to setup. Simply lower the submersible water pump into the water tank and connect to an outside tap.
Tank Benefits

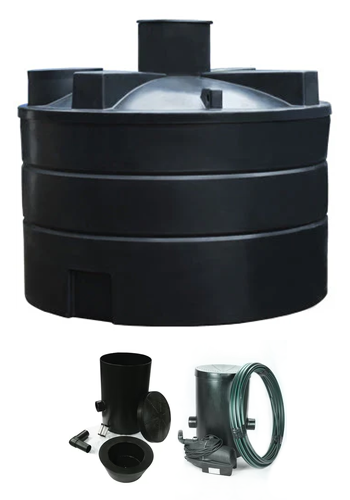

Perfect for both commercial and agricultural applications, the Ecosure 10,000-litre underground water tank offers a high-capacity, discreet solution for storing non-potable water safely below the surface. Its design is tailored for underground use, making it ideal for environments where above-ground space is limited or where visual impact must be minimized.
This heavy-duty tank is perfectly suited for a wide range of uses, including rainwater harvesting, irrigation systems, livestock watering, and industrial process water storage. Its underground placement protects the water from direct sunlight and temperature extremes, helping to maintain a more stable and cooler water temperature year-round.
Constructed from high-quality, UV-stabilised polyethylene, the tank is corrosion-resistant and designed to withstand the pressures of below-ground installation. Its structural integrity ensures long-term performance, even in challenging soil conditions.
For ease of installation, the tank comes with a 545mm extended neck, offering added flexibility for varying burial depths. The neck can be cut down on-site to fit specific installation requirements, and it’s compatible with a range of manhole covers and inspection ports, ensuring secure and convenient access when needed.
Height | 2200mm |
---|---|
Diameter | 2150mm |
Outlets | Upto 4" |
Access | 16'' Lid |
Weight | 240kg |
Capacity | 7000 Litres |
Material | MDPE |
Water Pump
The HydroForce Series 3 is an electronically-controlled, pressure-sensitive, submersible, centrifugal roto-dynamic pump with no reciprocating parts. Max head (nominal) 35 metres, pump pressure (nominal) at outlet 3.5 bar, max suction 3 metres.
Underground Filter
Made from the same high-quality MDPE as the underground water tank, the filter box can be installed anywhere along the inlet pipe between the tank and the down pipe. Ensure you can gain access to the filter for cleaning. Please note that the filter box lid is designed to withstand foot traffic only.
Rainwater Pipe
This system comes with 25m of 25mm Rainwater Harvesting Pipe. This pipe can be easily identified be the Green strip running down Black pipe. This pipe must be used under the Water Regulations.
