5000 Litres Super Complete Rainwater Harvesting System

5000 Litres Super Complete Rainwater Harvesting System

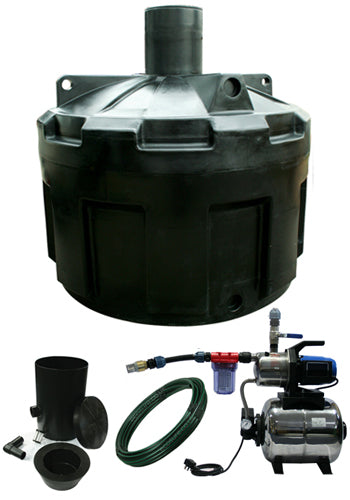

SuperComplete System includes

  • 1 x Underground rainwater tank
  • 1 x Stainless steel water pump
  • 1 x Walk-on removable lid
  • 1 x Extended neck
  • 1 x In-line filter box
  • 1 x 25m of 25mm Rainwater Harvesting Pipe
  • 1 x Brass foot valve
  • 3 x 25mm pipe connectors
  • 1 x 1" BSP isolator valve

£2,560.80

Includes VAT & Delivery (mainland England)

Brand: Ecosure
SKU: ECO5000SUPCOM
Est. Delivery 10 working days
Volume 5000 Litres
Availability: In Stock
download install guide Download Install Guide

Qty
Compare This Product
Add to wishlist Loading.. Remove From wishlist Go to wishlist

UK Shipping

Fast UK Delivery, Collection Available - call 01763 261781.

Made in britain - Union Flag - Union Jack

Made in Britain

Designed & manufactured in UK

masterpaypalvisa

About the system

The Ecosure 5000 litre Rainwater Harvesting Tank is an automatic rainwater harvesting system which is used for collecting and suppling water on demand for both Domestic and Commercial use.

This system consists of an industrial strength MDPE (Medium Density Polyethylene) tank complete with pipework connections, self priming inline pump, water filter. This system offers great savings on mainwater consumpsion and help towards the environment.

We are proud to be part of the Made In Britain campaign. Ecosure Rainwater Harvesting Systems are designed and manufactured at our factory near Cambridge. Made with strength and ease of installation in mind, they combine real quality with excellent value for money.

Underground water tank

Quality is our priority. All our underground tanks are manufactured from the highest quality tank-grade virgin MDPE. They are rotationally moulded using a one piece mould and come with a 10 year guarantee against manufacturing defects. The integrated lifting eyes allow for easy manoeuvring and all our tanks are compatible with UK standard 4" (110mm) pipe fittings. The neck ring can be cut down to suit the location.

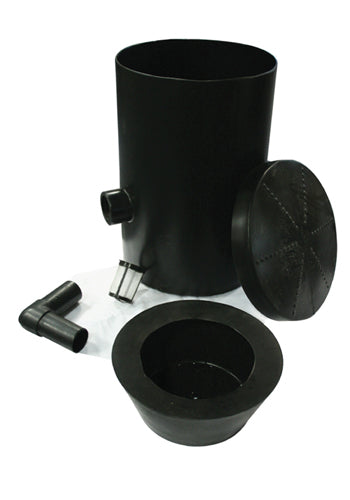

Underground filter

Made from the same high-quality MDPE as the underground water tank, the filter box can be installed anywhere along the inlet pipe between the tank and the down pipe. Ensure you can gain access to the filter for cleaning. Please note that the filter box lid is designed to withstand foot traffic only.

Rainwater pipe

This system comes with 25m of 25mm Rainwater Harvesting Pipe. This pipe can be easily identified be the Green strip running down Black pipe. This pipe must be used under the Water Regulations.

Back up in a box optional

This back up in box detects when the tank water level is running low and tops up the water level to ensure the tank never runs out of a water supply.

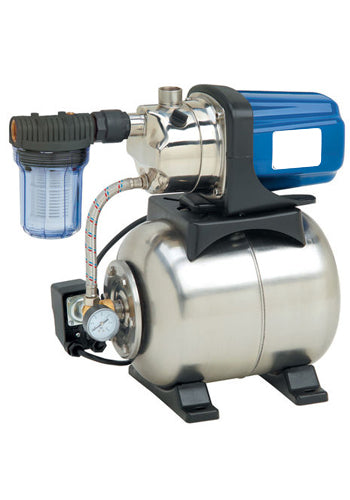

Pump included specification (BPT1200SS)

  • Maximum output: 61 litres/min
  • Maximum head: 46m
  • 1200 Watts, 230V motor
  • 19 litre stainless steel tank
  • Operating pressure: 3 bar (43psi)
  • Self-priming pump
  • Auto pressure, water-resistant on/off switch
  • 1" Outlet

Pump upgrade specification (CBT1400SS)

  • Maximum Output: 90L/min
  • Maximum head: 50m
  • Motor: 1650W/230V
  • Stainless steel tank, motor and impeller
  • 24L pressurised tank
  • Operating pressure: 5 Bar
  • Self-priming pump after initial manual priming
  • Auto pressure on/off switch
  • 1" Outlet
Underground Tank Dimensions
Height 1675mm
Diameter 2150mm
Access 450mm
Outlet 4''
Weight 140kgs
Capacity 5000 Litres

SuperComplete System includes

  • 1 x Underground rainwater tank
  • 1 x Stainless steel water pump
  • 1 x Walk-on removable lid
  • 1 x Extended neck
  • 1 x In-line filter box
  • 1 x 25m of 25mm Rainwater Harvesting Pipe
  • 1 x Brass foot valve
  • 3 x 25mm pipe connectors
  • 1 x 1" BSP isolator valve
Roof area (m2)
Your region
Total
5% of estimated annual yield of rainfall.
