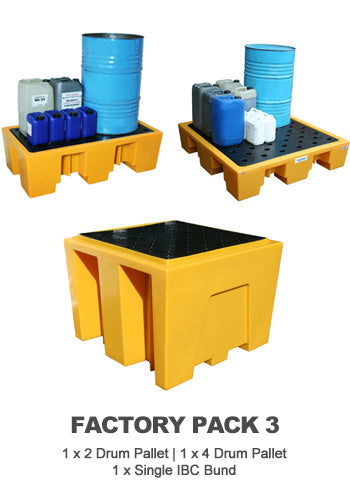

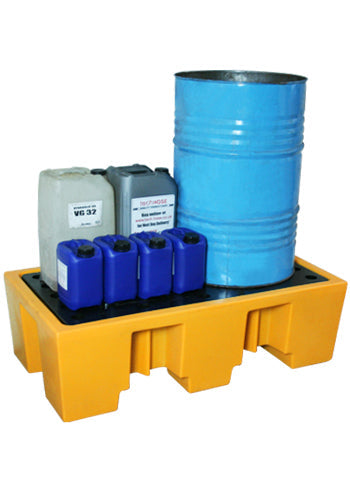

2 Drum Pallet Dimensions
Height 390mm
Width 730mm
Length 1350mm
Weight 25kg
Grid PE
Capacity 250 litres / 55 Gallon
SML 1350kg

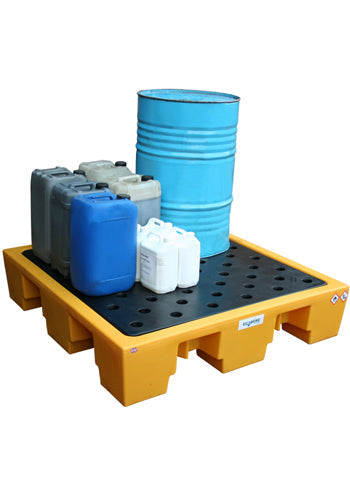

4 Drum Pallet Dimensions
Height 300mm
Width 1355mm
Length 1355mm
Weight 25kg
Grid PE
Capacity 250 litres / 55 Gallon
SML 1350kg




Single IBC Dimensions
Height 980mm
Width 1400mm
Length 1400mm
Weight 75kg
Grid None
Capacity 1350 litres / 297 Gallon
SML 1350kg
  • IBC bunds must be sited on a flat, level concrete base
  • Clearly label individual containers with details of what they contain and any hazard they pose;
  • Label storage areas with details of what can be stored in them;
  • Fit warning signs, for example appropriate hazardous substances symbols (pictograms), at access points to dedicated stores;
  • Store different materials separately so they can’t mix if there’s a leak (it’s easier to deal with a spill of just one material than a mixture); this may be a legal requirement for some substances - see information from the HSE;
  • Only keep the minimum working quantity of materials on site;
  • Protect storage from extremes in weather whenever possible, for example sunlight, frost;
  • Keep storage areas away, or isolated, from on site drainage, surface waters and groundwater and vehicle routes.
