About This System
Our easy hydro systems are designed to be straight forward and easy to setup. Simply lower the submersible water pump into the water tank and connect to an outside tap.

Tank Benefits

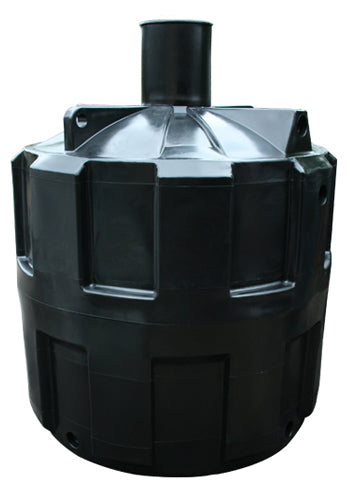

Made from industrial strength MDPE (Medium Density Polyethylene), the 7000 litre is a durable underground water tank, ideal for both domestic and commercial use, an extremely versatile storage tank ideal for water and chemical etc. Has the ability to take from 8mm in/outlet up to 110mm in/outlet in various positions.

This underground water tank is perfect for rainwater harvesting - the large 4" inlets/outlets are ideal for connecting to standard drainage pipe.

Complete with lifting lugs for easy manoeuvring. This style of underground water tank is ideal for under decking. Connect multiple tanks together using, up to 4" outlet pipe. Ideal out of the ground water storage tanks for industrial use.

Underground Water Tank Dimensions
Height 2200mm
Diameter 2150mm
Outlets Upto 4"
Access 16'' Lid
Weight 240kg
Capacity 7000 Litres
Material MDPE

Water Pump

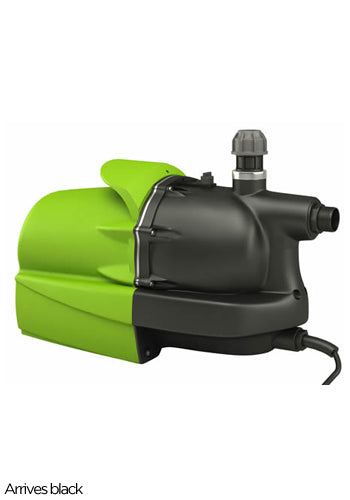

The HydroForce Series 3 is an electronically-controlled, pressure-sensitive, submersible, centrifugal roto-dynamic pump with no reciprocating parts. Max head (nominal) 35 metres, pump pressure (nominal) at outlet 3.5 bar, max suction 3 metres.

Underground Filter
Made from the same high-quality MDPE as the underground water tank, the filter box can be installed anywhere along the inlet pipe between the tank and the down pipe. Ensure you can gain access to the filter for cleaning. Please note that the filter box lid is designed to withstand foot traffic only.

Rainwater Pipe
This system comes with 25m of 25mm Rainwater Harvesting Pipe. This pipe can be easily identified be the Green strip running down Black pipe. This pipe must be used under the Water Regulations.

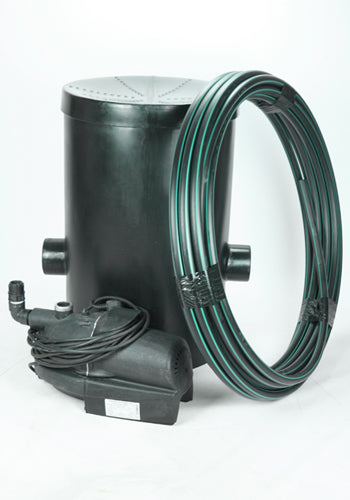

EasyHYDRO System includes

  • 1 x Underground rainwater tank
  • 1 x Amphibious water pump
  • 1 x Walk-on removable lid
  • 1 x Extended neck
  • 1 x In-line filter box
  • 1 x 25m of 25mm Rainwater Harvesting Pipe
  • 1 x Outside tap wall mounting
  • 1 x ¾" brass tap
